CM86 Refrigerant Charging System
CM86 production line freon filling equipment series is specially designed for refrigeration equipment production line,it's suitable for various application which includes chiller,air condition,
refrigerator or beer machine
The entire system was controller by Siemens PLC technology with full automatic operation. It featured for its high speed of charging, high accuracy. multiple function etc. CM8600 production line freon filling equipment are compatible with refrigerants of CFC,HFC,HC,etc. The production line freon filling equipment can also be customized according to your special requirements.
Features
(1) Full Automatic Control system, with the most accurate data processing capacity;
(2) Colorful touch screen, with smart control panel in both English and Chinese
(3) Suitable for various refrigerant,such as R134a, R22,R410a ,R407c,R32,R404a,R1234yf etc.
(4) Equipped with high resolution sensor flowmeter;
(5) Have the functioning of detecting vacuuming and leakage for workpiece;
(6) Efficient for improving production and charging quality;
(7) The barcode reader can be optional, save more than 40 different product items;
(8) Smart refrigerant charging gun to ensure the vacuuming efficiency, refilling accuracy and reliability;
Specification
| Suitable Refrigerant | R134A.R404A.R22.R410A.R290 etc. |
| Working pressure | 1.8MPa-2.8MPa |
| Refrigerant Charging Accuracy | ±0.5% |
| Charging Speed | 20g/s-200g/s |
| Vacuum Degree | ≤5Pa |
| Charging range | 0-50KG adjustable |
| Vacuum speed | 8L/S |
| Pre-set channel | 100 |
| Gauge meter | Mass flow meter |
| Vacuum inspect | 10-300Pa |
| Charging Gun Connection | Hansen 1/4"&3/8" |
| Length of filling pipe | 3-10M |
| Power and voltage | 380V 50Hz 3Ph & 220V 50Hz 1Ph |
| compressed air pressure | 6-8Bar |
| Product Dimension | 950W*750D*1450Hmm |
| Net weight | 250kg |
Features of Refrigerant Charging Machine
More Technical Features
Our Factory
Our Service

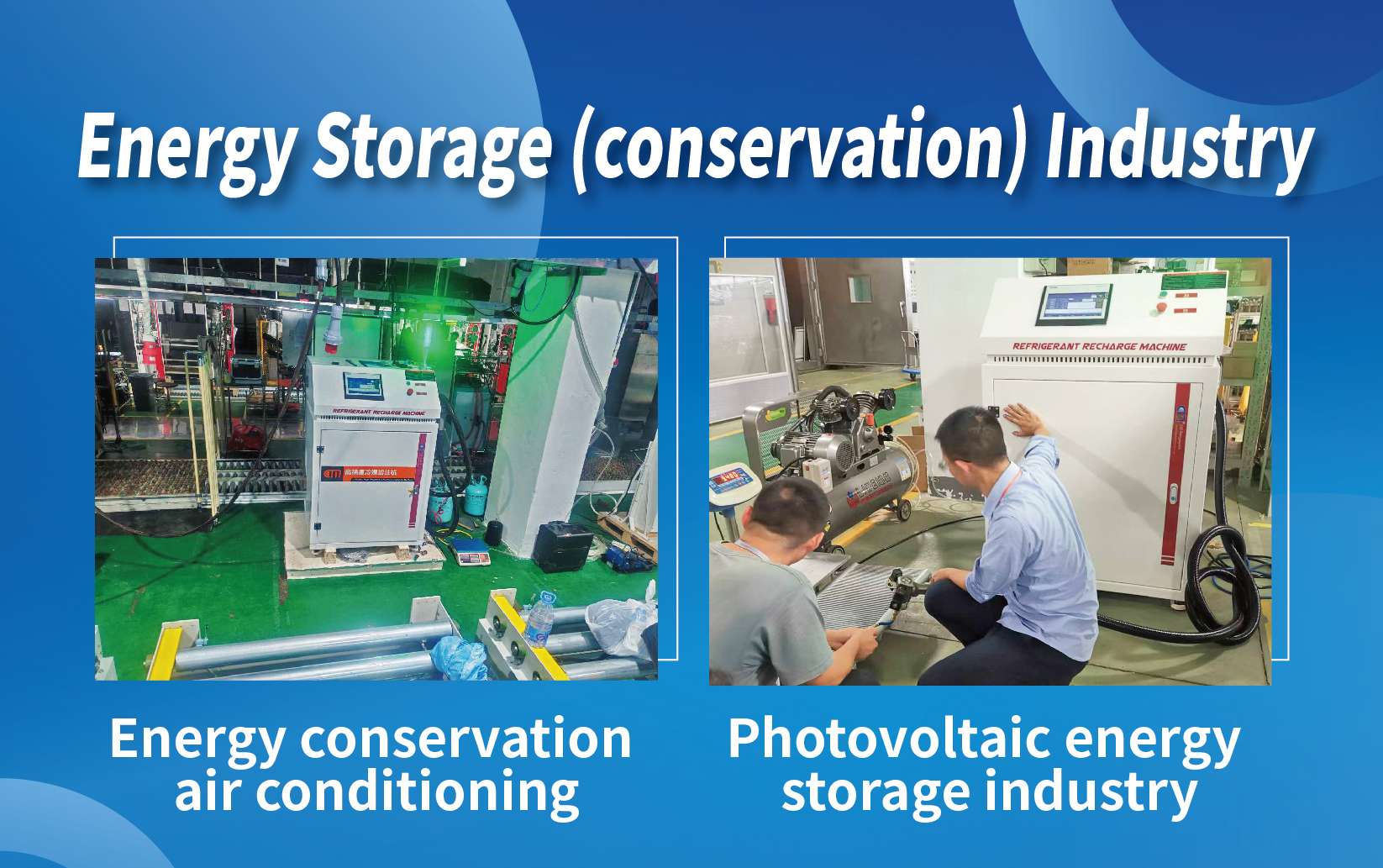

Customers' Site Cases
